ITEM DESCRIPTION

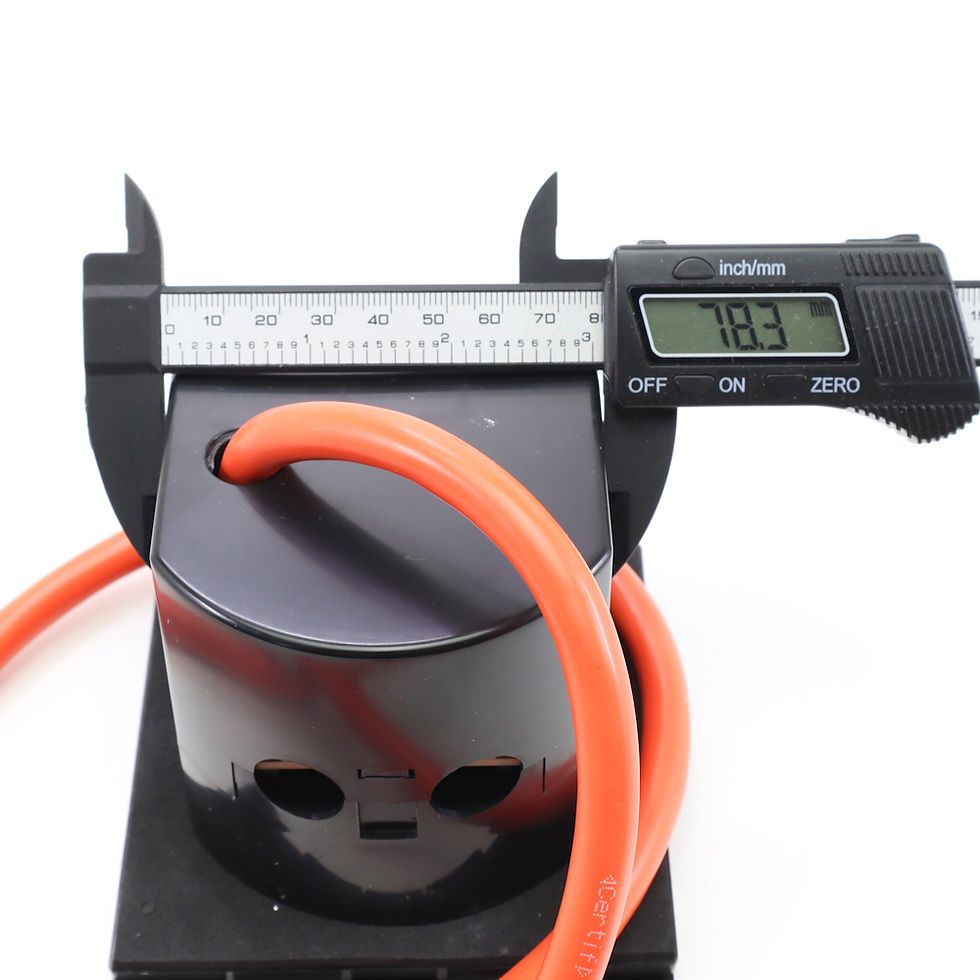

A black pre-wired mains 230v 3-pin inlet box, allowing mains hook-up at campsites
This unit is supplied with a pre-wired short wire tail with a mains quick connect 3-pin plug attached.
The quick connect plug works in conjunction with the plug and play mains RCD unit and harness that is available through our store. The 3-pin plug can also be removed if preferred
This is supplied with a waterproof padded gasket which sits between the unit and the vehicle body
The lid is spring loaded to keep the lid closed when travelling
An aperture size of 80mm x 90mm is required for fitting, with 80mm clearance required behind the unit
The external cover flap measures 106mm x 106mm
PACKAGE INCLUDES
- 1 x black pre-wired 3-pin mains hook-up unit
ADDITIONAL NOTES
- We sell the following items that work in conjunction with this item to create a modular harness;
- RCD mains consumer unit
- 3-pin male female connectors
- Pre-wired 1 meter extension lead
- Pre-wired 2 meter extension lead
- Pre-wired C-Line 230v 13a socket
- Pre-wired wall mount 230v 13a socket
- For use in campervans, motorhomes, marine craft and houseboats
