ITEM DESCRIPTION
This unit contains a grey C-Line single frame and a single 16amp rocker switch
This particular frame model is known as the 'CSM Range - Grey'
This is rated at 16amps @ 250v - This is suitable for mains applications and low voltage applicationsThs switch is a single pole, two position SPDT switch which can be wired as On/Off or On/On. The left terminal is common and the right terminals are circuits 1 and 2. Leave one circuit disconnected if using as an On/Off switchThis can also be used as a change over switch, to switch between accessory options, or to operate lights at different ends of a room. In this instance one switch can be partnered with another switch which serves as the master On/Off switch, where the master feeds power to the second switch and the second switch is used to alternate between the two different positions of the switch
For use in campers and houseboats
PACKAGE INCLUDES
- 1x C-Line 16amp rocker switch (screw to the wall)- 1x C-Line outer frame (clips to the switch)
ADDITIONAL NOTES
- These pieces all fit together so that the finished assemblage is screwed and clipped to the wall
- Once all items are in place there are no visible screws creating a professional clean finish
- Made from hard wearing plastic
- The frame measure 60mm by 60mm- 30m recess is required

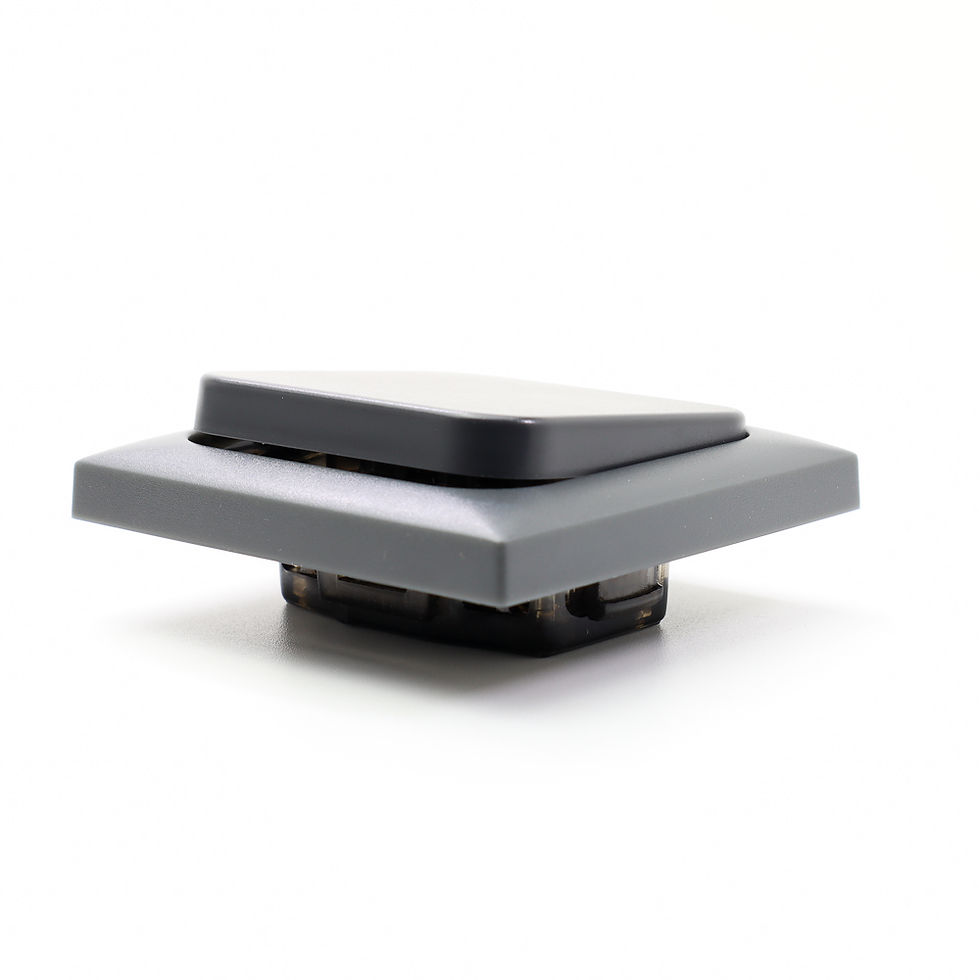

C-Line Single CSM Grey Frame w/ SPDT 2-Way Light Switch
SKU: CL13.1 CL4.6
£12.99 Regular Price
£11.69Sale Price
Returns are accepted if the item is returned within 30 days in the same condition that it was sent out. The buyer pays for return postage and ensures that the item is well packaged for return shipping
