ITEM DESCRIPTION

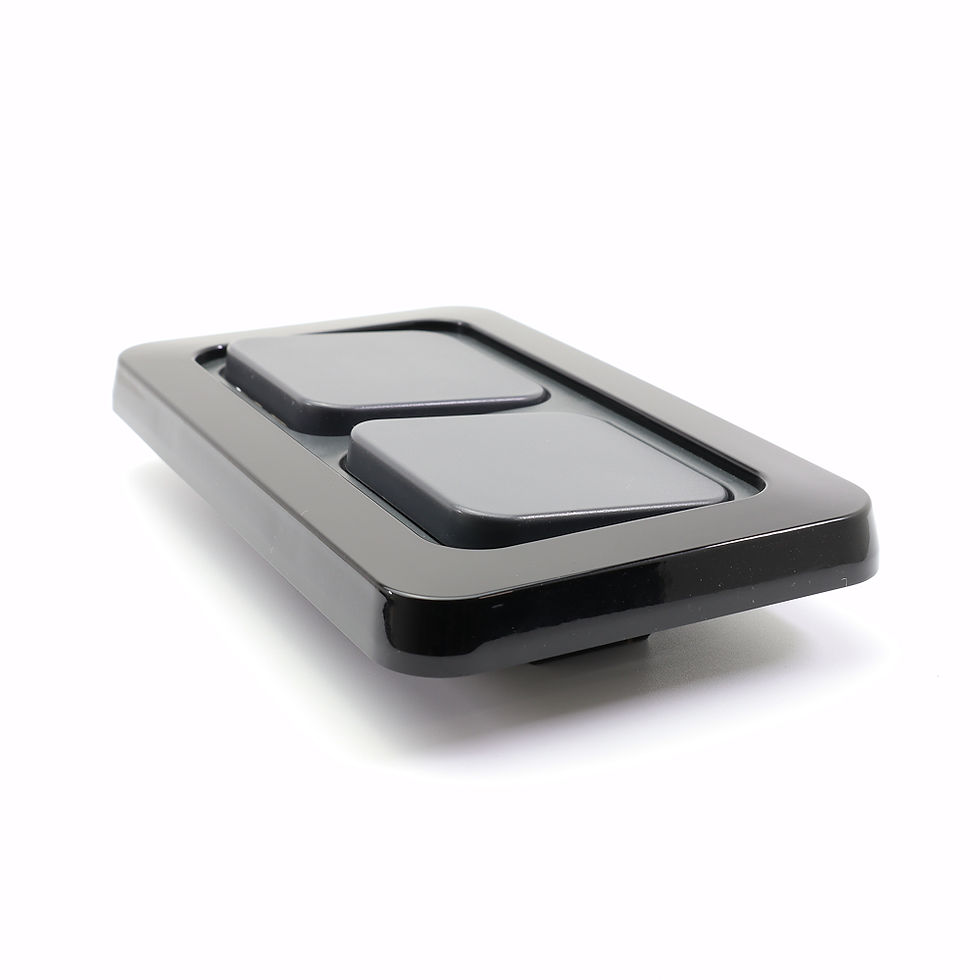

This unit features a gloss black C-Line double frame and 1x pair of 16amp rocker switches.

This particular frame model is known as the 'CT Range - Gloss black'

These are rated at 16amps @ 250v. These are suitable for mains applications and low voltage applications

Each switch is a single pole, two position SPDT switch which can be wired as On/Off or On/On. The left terminal is common and the right terminals are circuits 1 and 2. Leave one circuit disconnected if using as an On/Off switch

This can also be used as a change over switch, to switch between accessory options, or to operate lights at different ends of a room. In this instance one switch can be partnered with the other switch which serves as the master On/Off switch, where the master feeds power to the second switch and the second switch is used to alternate between the two different positions of the switch

--------------------
PACKAGE INCLUDES –
- 2x C-Line 16amp SPDT rocker switches
- 1x C-Line inner frame which fits over the rocker switches (screw to the wall)
- 1x C-Line outer frame (clips to the inner frame)
--------------------
ADDITIONAL NOTES -
- These pieces all fit together so that the finished assemblage is screwed and clipped to the wall
- Once all items are in place there are no visible screws creating a professional clean finish
- Made from hard wearing plastic
- The frame measures 128mm by 77mm
- 30mm recess is required
