ITEM DESCRIPTION

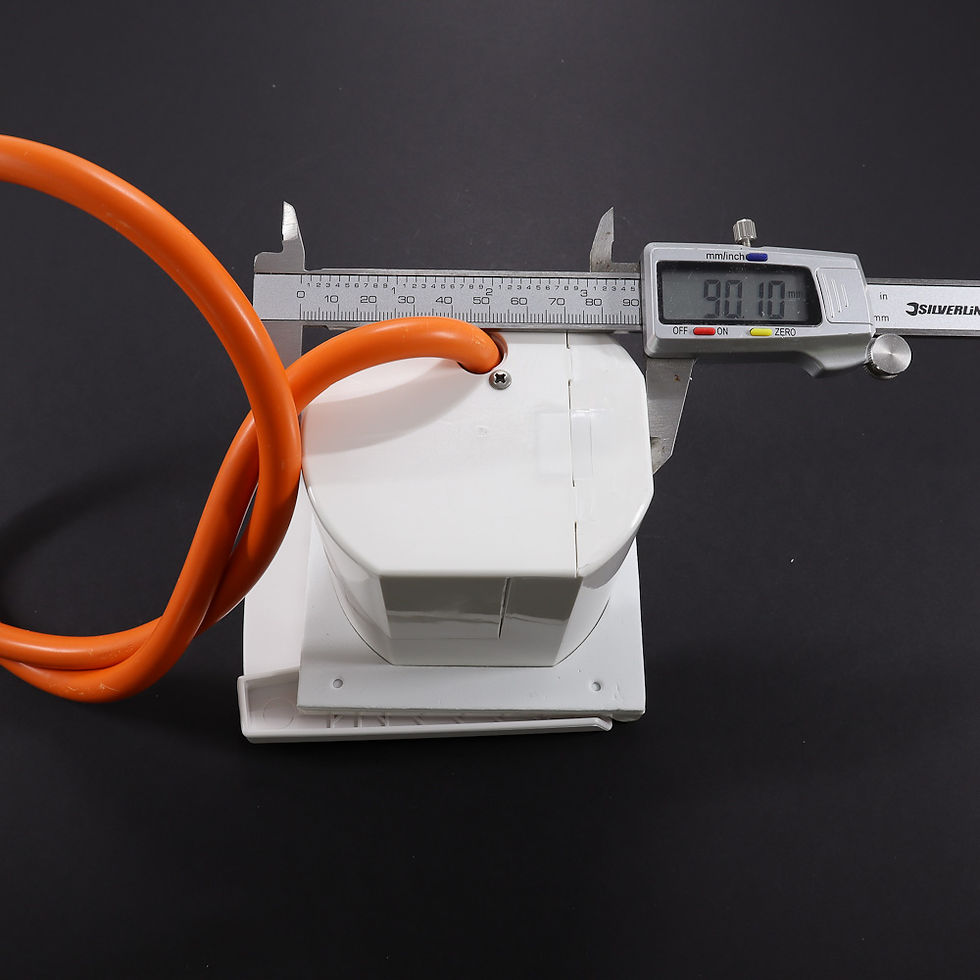

A white pre-wired mains 230v 3-pin inlet box, allowing mains hook-up at campsites

This unit is supplied with a pre-wired short wire tail with a mains quick connect 3-pin plug attached.

The quick connect plug works in conjunction with the plug and play mains RCD unit and harness that is available through our store. The 3-pin plug can also be removed if preferred

This particular unit has a larger flap/lid than the standard units providing additional waterproofing features

This fits flush to the vehicle body - This is supplied with a waterproof padded gasket which sits between the unit and the vehicle body

The lid is spring loaded to keep the lid closed when travelling

An aperture size of 80mm x 90mm is required for fitting, with 80mm clearance required behind the unit

The external cover flap measures 120mm x 130mm

PACKAGE INCLUDES
- 1 x white pre-wired 3-pin mains hook-up unit

ADDITIONAL NOTES
We sell the following items that work in conjunction with this item to create a modular harness;
RCD mains consumer unit
3-pin male female connectors
Pre-wired 1 meter extension lead
Pre-wired 2 meter extension lead
Pre-wired C-Line 230v 13a socket
Pre-wired wall mount 230v 13a socket

- For use in campervans, motorhomes, marine craft and houseboats
